Subaru transfer helical gears set + PLUS

Subaru_Transfer_gear_set_complete_helical

The stronger helical set of +PLUS conversion wheels are designed to eliminate the weak points of the 6MT  gearbox and are therefore suitable for high torque transmission. The kit is made of high-strength steel according to the latest technological advances and analysis, making it capable of transmitting up to 1200Nm of torque from the engine. Also new is the possibility of changing the wheels, which expands the options if the rear differential ratio needs to be changed or the wheels wear out, and last but not least, they also reduce service costs and save your money.

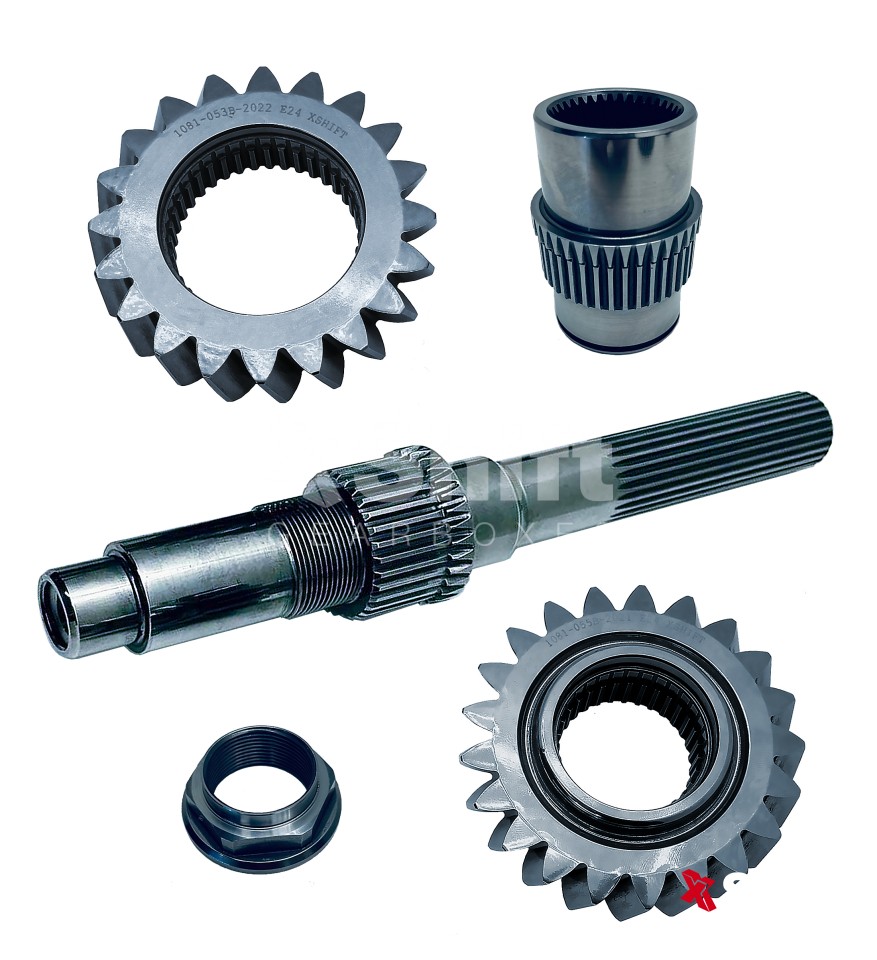

The set includes:

• Input driveshaft
• Output driveshaft
• Input driveshaft wheel
• Output driveshaft wheel
• Locking nut

The kit is available for the following configurations:

Subaru 2001-2005: differential DCCD

• 1:1 ratio (for 3.9:1 front differential; 3.9:1 rear differential)
• 1.1:1 (for front differential ratio 3.9:1; rear differential ratio 3.54:1)

Subaru 2006-2020: differential DCCD

• 1:1 (for front differential ratio 3.9:1; rear differential ratio 3.9:1)
• 1.1:1 (for front differential ratio 3.9:1; rear differential ratio 3.54:1)

Subaru 2000-2008: Bevel differential with viscous coupling (NON DCCD)

• 1:1 ratio (for front differential 3.9:1; rear differential 3.9:1)
• 1.1:1 (for front differential ratio 3.9:1; rear differential ratio 3.54:1)
