Toyota GR Yaris Sequential Gearbox 5, 6, 7 speed
TY-7 GR Yaris Sequential Gearbox 7 SPEED
TY-7 GR Yaris Sequential Gearbox 5, 6, 7 Speed

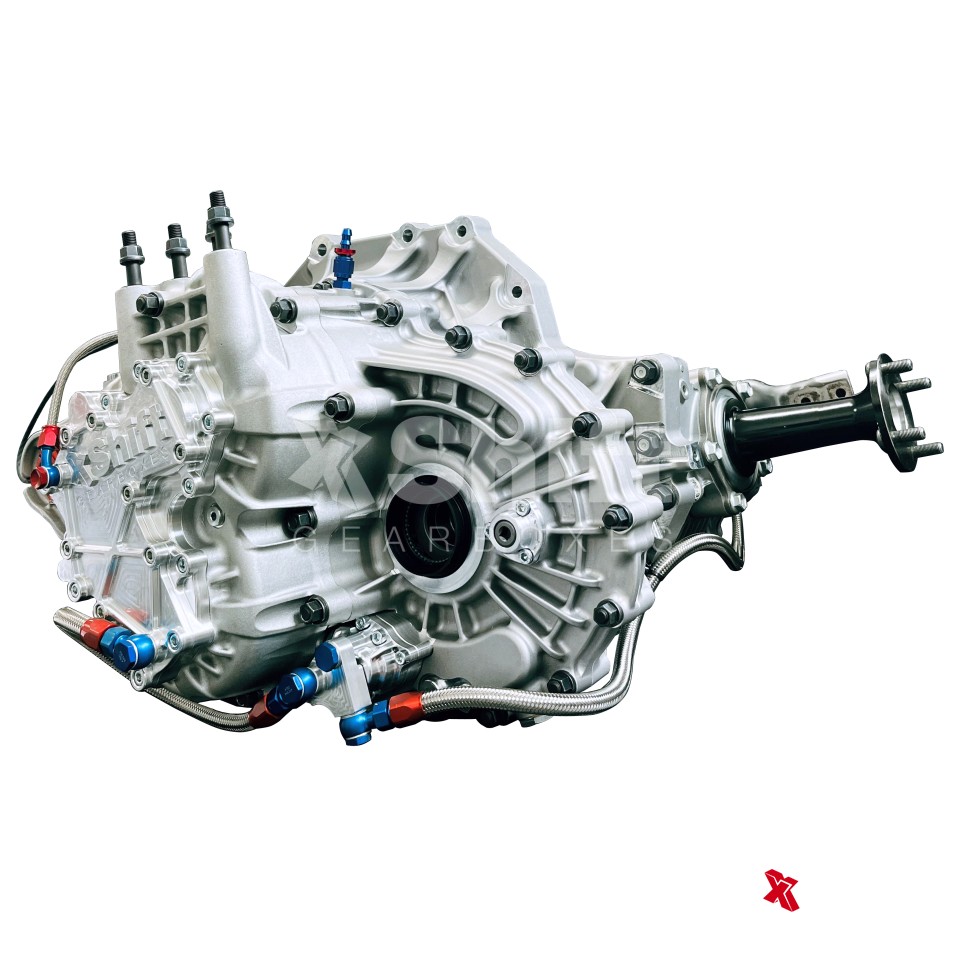

TY-7 GR Yaris Sequential Gearbox 5, 6, 7 Speed with the most modern shifting mechanism and properties required for top race cars. This sequential is a complete gearbox and is direct replacement of Toyota GR Yaris original gearbox.
Specifications and advantages
- Latest shifting mechanism and dog engagement system
- 5/6/7 speed ratios
- Gearbox case made from ultra-lightweight aircraft grade aluminium CNC Billet - rated to 1600Nm engine torque
- Barrel rotation customization: R-N-1-7 or R-N-1-2-3-4-5-6-7-R-N-1-2..
- Option for cooling the transfer case
- Position for original oil temperature sensor
- Gear position sensor included
- Shifting with rod or cable in neat interior design
- Aluminum or carbon shifting lever
- Limited slip differential with externally adjustable preload
- Integrated oil pump better lubrication = increased lifespan
- Bellhousing in unique design included
All parts are made of billet steel, applied special heat treatment and REM isotropic superfinished to ensure strength and high level of abrasion resistance.
TY-7 GR Yaris Sequential Gearbox 5, 6, 7 Speed
Specifications and advantages
- Latest shifting mechanism and dog engagement system
- 5/6/7 speed ratios
- Gearbox case made from casting - rated to 1400Nm engine torque
- Barrel rotation customization: R-N-1-7 or R-N-1-2-3-4-5-6-7-R-N-1-2..
- Option for cooling the transfer case
- Position for original oil temperature sensor
- Gear position sensor included
- Shifting with rod or cable in neat interior design
- Aluminum or carbon shifting lever
- Limited slip differential with externally adjustable preload
- Integrated oil pump better lubrication = increased lifespan
- Bellhousing in unique design included
All parts are made of billet steel, applied special heat treatment and REM isotropic superfinished to ensure strength and high level of abrasion resistance.
X Shift Gearboxes recommend for gearbox this twin plate clutches
- ATS JAPAN TWIN PLATE CLUTCH (METAL TYPE) - RT23H2160-11S
- OGURA RACING ORC 559DB TWIN PLATE CLUTCH for Toyota GR Yaris
GR Yaris Performance lubrication system.
The Toyota GR Yaris has insufficient lubrication to the transfer case, this was one of the main improvements that was needed, here at XShift gearboxes we developed a solution that uses a powerful gearbox lubrication pump which provides an oil supply to the transfer case increasing the durability and life to this part.
GR YARIS BILLET TRANSFER CASE
Specifications and advantages
- Used high strength quality material Al 7075 with tensile strength 540 MPa
- Extra ribs added on the inside and outside to further increase strength
- Added cooling fins from underneath for further temperature reduction
- Bottom to ground dimensions are the same as OEM
- Body has ready-made plugs for external oil circuit
- Body has holes for connection to transfer case lubrication system (no further modification required)
- Compatible with original OEM gearing as well as XSHIFT SHD gearing
- Due to the clever design of the body and lid, higher oil volume + 25% against the OEM transfer case - temperature reduction
Five billet transfer case supply options:
1. - billet transfer case
2. - billet transfer case + SHD hypoid gearing
3. - billet transfer case + SHD hypoid gearing + OEM set of seals
4. - billet transfer case + SHD hypoid gearing + OEM set of seals + OEM bearings
5. - billet transfer case + SHD hypoid gearing + OEM set of seals + OEM bearings + rest of OEM parts (=complete plug and play transfer case)
Parts of the kit of each option:
| |
1. |
2. |
3. |
4. |
5. |
| Transfer case body + outer cover + gasket |
✓ |
✓ |
✓ |
✓ |
✓ |
| Unique parts required for assembly included |
✓ |
✓ |
✓ |
✓ |
✓ |
| SHD hypoid gearing |
|
✓ |
✓ |
✓ |
✓ |
| SHD hypoid clearance shims |
|
✓ |
✓ |
✓ |
✓ |
| Gasket set |
|
|
✓ |
✓ |
✓ |
| Seal gaskets, retaining ring, nut |
|
|
✓ |
✓ |
✓ |
| Pinion + shaft bearings |
|
|
|
✓ |
✓ |
| All necessary parts, needed to complete whole transfer case |
|
|
|
|
✓ |
Reach out to get price for any option you need!
TY7-Toyota GR Yaris 5, 6, 7 speed with oil pump
TY7- Toyota GR Yaris 5, 6, 7 speed
TY7-Toyota GR Yaris 5, 6, 7 speed open
Toyota GR Yaris Aluminium gear lever
Toyota GR Yaris Aluminium gear lever with Bowden Cable
Toyota GR Yaris Carbon fibre gear lever with Bowden Cable
SPEED GRAPHS TY7-GR 7 speed
TY7-GR 7_speed_7000_rpm_1255_230kmph (custom ratio available on request)
TY7-GR 7_speed_7000_rpm_1251_248kmph (custom ratio available on request)
TY7-GR_7_speed_7000_rpm_1248_263kmph (custom ratio available on request)
TY7-GR_7_speed_7000_rpm_1453_278kmph (custom ratio available on request)
TY7-GR_7_speed_7000_rpm_1551_310kmph (custom ratio available on request)
SPEED GRAPHS TY6-GR 6 speed
TY6-GR 6_speed_7000_rpm_1255_197kmph (custom ratio available on request)
TY6-GR 6_speed_7000_rpm_1251_212kmph (custom ratio available on request)
TY6-GR 6_speed_7000_rpm_1248_225kmph (custom ratio available on request)
TY6-GR 6_speed_7000_rpm_1453_238kmph (custom ratio available on request)
TY6-GR 6_speed_7000_rpm_1551_265kmph (custom ratio available on request)
SPEED GRAPHS TY5-GR 5 speed
TY5-GR 5_speed_7000_rpm_1251_174kmph (custom ratio available on request)
TY5-GR 5_speed_7000_rpm_1248_185kmph (custom ratio available on request)
TY5-GR 5 speed_7000_rpm_1453_196kmph (custom ratio available on request)
TY5-GR 5_speed_7000_rpm_1551_218kmph (custom ratio available on request)
Toyota Yaris Cup
Torque rating1000 Nm
Gear ratios6 speed
