Page 2 - SUBARU TRANSFER GEARS

SUBARU TY856 6MT

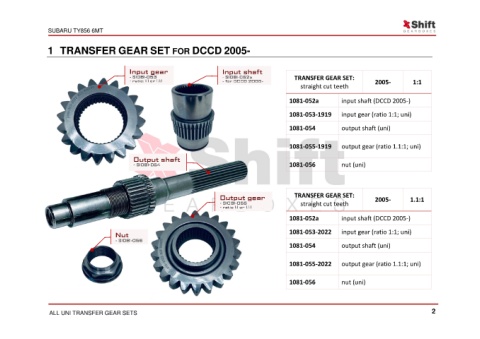

1 TRANSFER GEAR SET FOR DCCD 2005-

Input gear Input shaft
- S1081-053 - S1081-052a TRANSFER GEAR SET: 2005- 1:1
- ratio: 1:1 or 1.1:1
- for DCCD 2005-
straight cut teeth

1081-052a input shaft (DCCD 2005-)
1081-053-1919 input gear (ratio 1:1; uni)

1081-054 output shaft (uni)

1081-055-1919 output gear (ratio 1.1:1; uni)

Output shaft
- S1081-054 1081-056 nut (uni)

TRANSFER GEAR SET:
Output gear 2005- 1.1:1
- S1081-055 straight cut teeth
- ratio 1:1 or 1.1:1
1081-052a input shaft (DCCD 2005-)

1081-053-2022 input gear (ratio 1:1; uni)
Nut
- S1081-056
1081-054 output shaft (uni)

1081-055-2022 output gear (ratio 1.1:1; uni)

1081-056 nut (uni)

ALL UNI TRANSFER GEAR SETS 2
