SUBARU TY856 6MT

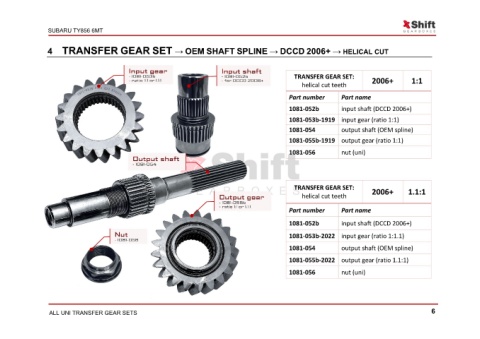

                  4   TRANSFER GEAR SET → OEM SHAFT SPLINE → DCCD 2006+ → HELICAL CUT



                                              - 1081-053b                      - 1081-052b              TRANSFER GEAR SET:          2006+        1:1
                                              - ratio: 1:1 or 1.1:1
                                                                               - for DCCD 2006+
                                                                                                           helical cut teeth
                                                                                                      Part number        Part name

                                                                                                      1081-052b          input shaft (DCCD 2006+)
                                                                                                      1081-053b-1919  input gear (ratio 1:1)
                                                                                                      1081-054           output shaft (OEM spline)

                                                                                                      1081-055b-1919  output gear (ratio 1:1)
                                                                                                      1081-056           nut (uni)


                                                - 1081-054


                                                                                                        TRANSFER GEAR SET:          2006+       1.1:1
                                                                                                           helical cut teeth

                                                                              - 1081-055b
                                                                              - ratio 1:1 or 1.1:1
                                                                                                      Part number        Part name
                                                                                                      1081-052b          input shaft (DCCD 2006+)

                                                                                                      1081-053b-2022  input gear (ratio 1:1.1)
                                         - 1081-056
                                                                                                      1081-054           output shaft (OEM spline)

                                                                                                      1081-055b-2022  output gear (ratio 1.1:1)

                                                                                                      1081-056           nut (uni)






                    ALL UNI TRANSFER GEAR SETS                                                                                                           6
