Page 9 - SUBARU TRANSFER GEARS

SUBARU TY856 6MT

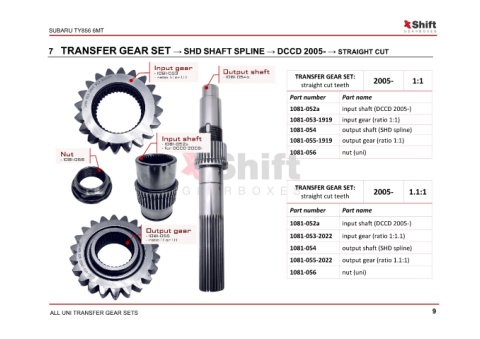

7 TRANSFER GEAR SET → SHD SHAFT SPLINE → DCCD 2005- → STRAIGHT CUT

- 1081-053 TRANSFER GEAR SET:
- ratio: 1:1 or 1.1:1 - 1081-054b 2005- 1:1
straight cut teeth
Part number Part name

1081-052a input shaft (DCCD 2005-)
1081-053-1919 input gear (ratio 1:1)
1081-054 output shaft (SHD spline)

1081-055-1919 output gear (ratio 1:1)
- 1081-052a
- for DCCD 2005-
1081-056 nut (uni)
- 1081-056

TRANSFER GEAR SET: 2005- 1.1:1
straight cut teeth

Part number Part name

1081-052a input shaft (DCCD 2005-)

- 1081-055 1081-053-2022 input gear (ratio 1:1.1)
- ratio 1:1 or 1.1:1
1081-054 output shaft (SHD spline)

1081-055-2022 output gear (ratio 1.1:1)

1081-056 nut (uni)

ALL UNI TRANSFER GEAR SETS 9
